Dimmer Packs

Details

• 32 Amp. MCB For power on /off
• Power on Indicators by Red LED.
• Dimmer output Indicators by Green LED.
• Dimming volume for dim/bright.
• 60Amp. Strip For Output.
• 3 Pin fuji metal connectors for Remote in.
• 60 Amp. Strip for Mains input.

Feature

• Single chn. 5000 watts Dimmer
• Mains input 180 volt Ac to 240 volt Ac 50Hz.
• Power on/off by 32 Amp. MCB
• 0 To 99.2% dimming output.
• Humming free dimmer

Details

• 12 CH 30 KW DMX 512 Dimmer Pack
• Power 3 Phase or 220 Volt 50Hz
• Each Chanel 20 Amp MCB.
• Load By 16 Amp. 5 Pin Socket.
• DMX Data, Error DMX on Indicators
• Chesses Earth Wire Avaiable.
• Master for Dimming all Channel Brightness.
• Each CH 16 Amp. Socket of 5 Pin
• 15 Pin D Socket Connector For Remote in
• Phase Indicators By RYB Neon
• Size : 510x185x450mm (WHL)

Details

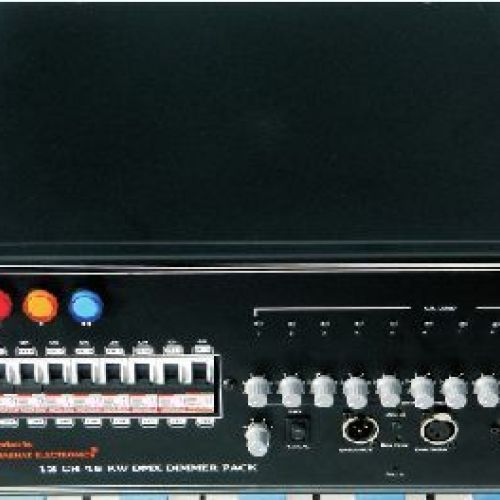

• 12 CH 48 KW DMX 512 Dimmer Pack
• Power 3 Phase or 220 Volt 50Hz
• Each Chanel 25 Amp MCB.
• Load 16-20 Amp. 220 volts Ac.
• DMX On ,Data, Error Indicators
• Chesses Earth Wire Available.
• Master for Dimming All CH Brightness.
• Each CH 16-20 Amp. Suko Socket of 5 Pin
• 15 Pin D Socket Connector For Remote in
• Phase Indicators By RYB Neon
• Size : 510x185x450mm (WHL)

Details

• 12 CH 30 KW DMX 512 Wall Mount Dimmer.
• Power 3 Phase or 220 Volt 50Hz
• Each Chanel 20 Amp MCB .
• Load By 20 Amp. MCB with 2.5mm Wire
• DMX On, DMX Data, Dmx Error Indicators
• Chesses Earthling Wire
• Mains Power Switch of 100 Amp. 4P Isolator
• Each CH 20 Amp. MCB Each Phase AC n Hz Volt meter
• 15 Pin D Connector Socket For Remote in
• Phase Indicators By RYB Neon
• DMX 512 Addressing by Coded Switch

Features

• This Is Small 1 Channel Dimmer.
• Mains Input 230 V. Ac
• Output Load 1000watt.
• Dimming 0 To 230 Volt Ac
• Output Compare To Input Is .5% Less.
• Humming Free Dimmer. No Noise In Dimming Time.
• Load And Power On Indicators.
• Dimmable Driver, Phase Cut Driver, Filament Dimmable Led Bulb, Halogen Bulb, Beam Paar, Tungsten Bulb, Ac Led Lights, Led Strip Light (with Dimmable Driver),Warm White And Cool White Lighting And More.\
• Aluminum Cabinet, silver Grey paint.
• 3 Plie Gatta Packing.

Features

• This Is Small 2 Channel Dimmer.
• Mains Input 230 V. Ac
• Output Load 2000watt.
• Dimming 0 To 230 Volt Ac
• Output Compare To Input Is .5% Less.
• Humming Free Dimmer. No Noise In Dimming Time.
• Load And Power On Indicators.
• Dimmable Driver, Phase Cut Driver, Filament Dimmable Led Bulb, Halogen Bulb, Beam Paar, Tungsten Bulb, Ac Led Lights, Led Strip Light (with Dimmable Driver),Warm White And Cool White Lighting And More.\
• Aluminum Cabinet, silver Grey paint.
• 3 Plie Gatta Packing.

Details

• Power on/off MCB Switch 63 Amp.
• Mains Power Input by Ht3 60Amp.
• Each CH output load Indicators
• Mains on indicators BY NEON .
• Each Way / CH Channel Load 12000W
• Chaser for 3 channel with speed control
• 220 Volt 50Hz. Mains Input
• Packing in paper box.

Details

• 6 CH 15 KW Dimmer Pack Maximum Load 24Kw
• Power 3 Phase or 220 Volt 50Hz
• Each Phase 32 Amp. MCB.
• Load By 16 Amp. 5 Pin Socket
• Flash Switch Manual, Remote, Chaser Switching
• Chesses Ground Feature.
• Master for Dimm-Bright all Channel
• Each CH 16 Amp. X 2 Socket of 5 Pin
• 8 Pin Circular Socket for Remote in
• Phase Indicators By R Y B L.E.D.

Details

• 6 CH 15 KW DMX 512 Dimmer Pack Maximum Load 24Kw Total
• Power 3 Phase or 220 Volt 50Hz
• Each Chanel 20 Amp. MCB. Normal
• Load By 16 Amp. 5 Pin Socket
• Flash Switch. DMX On, Data, Error Indicators
• Chesses Ground Feature with 2.5mm Green Wire
• Master for Dimming all Channel
• Each CH 16 Amp. X 2 Socket of 5 Pin
• 8 Pin Circular Socket for Remote in
• Phase Indicators By R Y B L.E.D.

Details

• 6 CH 15 KW Dimmer Pack Maximum Load 24Kw
• Power 3 Phase or 220 Volt 50Hz
• Each Phase 32 Amp. MCB.
• Load By HT3 60 Amp. Strip 3No.
• Flash Switch And Load Indicators Each Channel
• Chesses Earthling, Selector Switch for Remote, Manual, Chaser.
• Master for Dimming of all Channel Output.
• Each CH 20 Amp. Fuse
• 8 Pin Circular Socket for Remote in
• Phase Indicators By R Y B L.E.D.

Details

• 6 CH 24 KW DMX 512 Dimmer Pack. Maximum Load 30Kw Total
• Power 3 Phase or 220 Volt AC 50Hz
• Each Chanel 25 Amp. MCB.
• Load By 16 Amp. 5 Pin Socket
• Flash Switch DMX Data, Error Indicators
• Chesses Earthlings by 2.5mm Green Wire.
• Master for Dimming all Channel
• Each CH 16 Amp. X 2 Socket of 5 Pin
• 8 Pin Circular Socket for Remote in
• Phase Indicator By R Y B Neon Lamp

Details

• Master for Dimming all Channel
• Each Phase AC Meter For voltage n frequency display.
• Mains Power Switch of 100 Amp. 4P Isolator
• Phase Indicators By RYB Neon
• DMX 512 Addressing by Coded Switch

Details

• 6 CH 24 KW DMX 512 Dimmer Pack Maximum Load 30Kw Total
• Power 3 Phase or 220 Volt 50Hz
• Each Chanel 25 Amp. MCB.
• Load By 16-20 Amp. 3 Pin Industrial Socket
• Flash Switch ,DMX Data, Error Indicators
• Chesses Earthling by 2.5mm Green Wire.
• Master for Dimming all Channel
• Each CH 16-20 Amp. Suko Socket of 5 Pin
• 8 Pin Circular Socket for Remote in
• Phase Indicators By R Y B Neon Lamp
