DMX Circuit Boards

Leading Manufacturers, Exporters, Wholesaler and Retailer of CB12 DMX Circuit Board and CB24 DMX Circuit Board from Delhi.

Business Type Manufacturer, Supplier, Retailer, Wholesaler
Country of Origin India
Frequency 50Hz
Packaging Type Carton, Paper Box
Power Source Electric
Size 89x110mm
Weight 200 g

Preferred Buyer From

Location Worldwide

Details

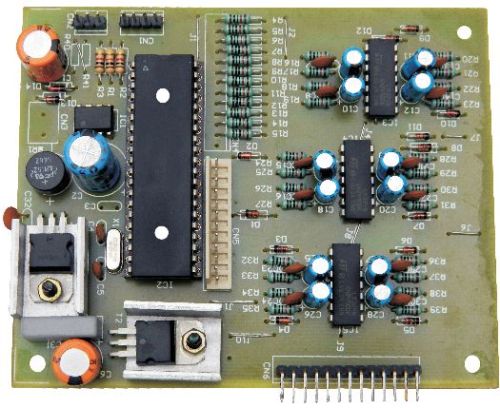

  • 12 CH DMX 512 Circuit Board/Kit.
  • Supply 15 Volt 500 Milli Amp.
  • DMX Data Receiving CN 2 by 3 Pin 1g Pin 2 - 3+
  • Data Output, Error and Power on Indicators.
  • Indicators Out CN1C Pin 1+ Positive
  • Pin No. 2 Power, Pin No. 3 Data, Pin No. 4 Error
  • CN 6 Pin No. 1 - pin 2 to 13. 10 Volt Output. 12 output.
  • CN 5 Pin 1-, Pin 2 to 12 Address Set.
  • CN 3 0-15 Volt 500 Milli Amp. Supply.
Read More...


Yes! I am interested


Business Type Manufacturer, Supplier, Retailer, Wholesaler
Country of Origin India
Frequency 50Hz
Packaging Type Carton, Paper Box
Power Source Electric
Size 87x280mm
Weight 250 g

Preferred Buyer From

Location Worldwide

Details

  • 24 CH DMX 512 Circuit Board/Kit.
  • Supply 15 Volt 750 Milli Amp.
  • DMX Data Receiving CN4 Pin 1-ground pin 2 - data pin 3+data
  • Data Output and Error Indicators.
  • Indicators Out CN3 Pin 1+5V Pin 2 -5V 3- error 4- data
  • CN 6 Pin 1 - 5V, 2 to 9 10 Volt Output. out 1-8
  • CN 9 Pin 1- 5V, 2 to 9 10 Volt Output. out 9-16
  • CN 10 Pin 1- 5V, 2 to 9 10 Volt Output. out 17-24
  • CN 5 Pin 1 - 5V, Pin 2 to 12 Address Set.
  • CN 2 0v-5v-12V, 750 Mili Amp. Supply.
Read More...


Yes! I am interested
